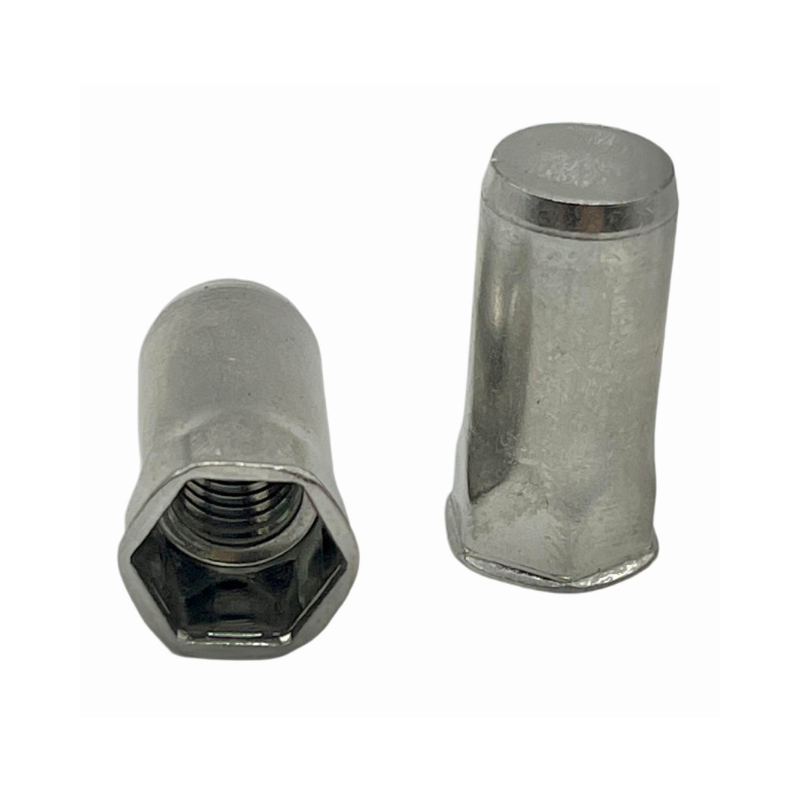

Small Flange Stainless Steel Hex Body Closed End Rivnuts
From: $118.00
RivnutsĀ are a quick, reliable, low-cost way to insert high-quality load-bearing threads into weak or thin-gauge materials. RivnutsĀ provide load-bearing threads in sheet materials as thin as 0.50mmĀ and has one-sided, blind insert capabilities.
Available in different headforms, including large flange, low profile and various platings including steel, stainless steel, and aluminum alloy. Rivnuts can be installed in pre-coated or post-painted applications without damaging the surface.
Hex Series- FeaturesĀ
The Hex Body Closed End Series is ideal when a low load bearing application requires a seal to prevent the ingress of liquids, solids or moisture. Key features include the Hexagon body that maximises the resistance to applied torque or reverse torque unbolting. The tapered entry allows for easy Hex Hole insertion.
Available in Pack Sizes of 100
View Data Sheet: Small Flange Stainless Steel Hex Body Closed End Rivnuts
View our Full Rivnut Range Data Sheet Catalogue by clicking HERE
FREE Shipping for orders over $100.
- Satisfaction Guaranteed
- Secure Payments
Additional information
Size | M8 Grip Range 3.0mm-5.5mm, M10 Grip Range 1.5mm-3.5mm, M4 Grip Range 0.5mm-2.5mm, M5 Grip Range 0.5mm-3.0mm, M6 Grip Range 0.5mm-3.0mm, M8 Grip Range 0.5mm-3.0mm |
---|---|
Pack Size |
